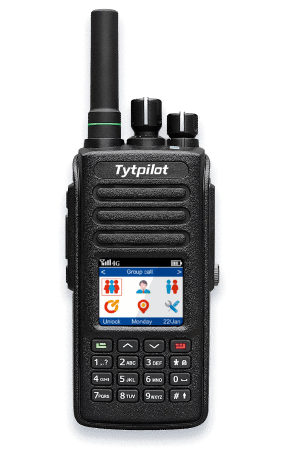

PT300U PoC Radio
Your Image
Your Image Your Image
Amazing Features
Multiple Modes of PTT Call Utilize to meet unique, immediate communication needs of common applications.
PT300U supports intelligent patrol route verification
PT300U can send instant SOS notifications in the case of an emergency
PT300U provides highly accurate, real-time GPS location
Dispatcher Remote Control Support
Dual SIM provides ability to easily swap between different operators due to the coverage
Highlights

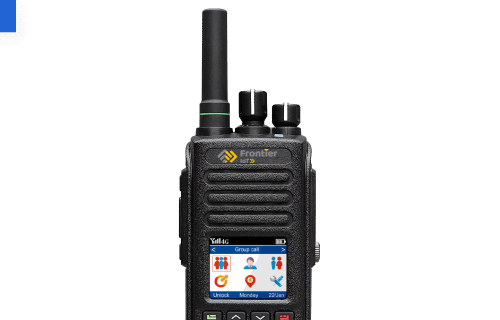

Purpose-Built Design

PT300U is a cutting edge PoC radio but is stylized to mimic the widely familiar aesthetics of legacy two-way radio terminals.

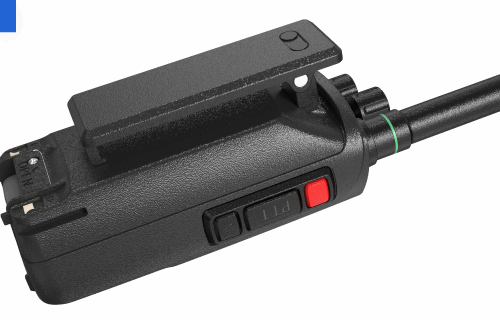

Its large, easy to read display, ergonomic keypad with dedicated navigation keys, and ample-sized PTT button, make it extremely easy to operate even while wearing thick gloves.

Your Image
Your Image

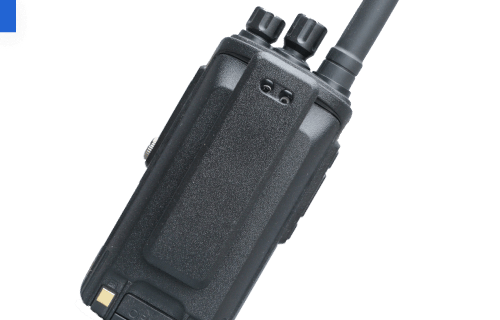

Robust and Reliable

Certified with an IP68 rating and conforming to the MIL-STD-810G standard, PT300U is built rugged to withstand water, dust, shock,extreme temperatures, and drops from up to 6ft in height.

The unwavering physical durability of the PT300U is what ensures it cancontinue to perform as expected even in the harshest environmental conditions.

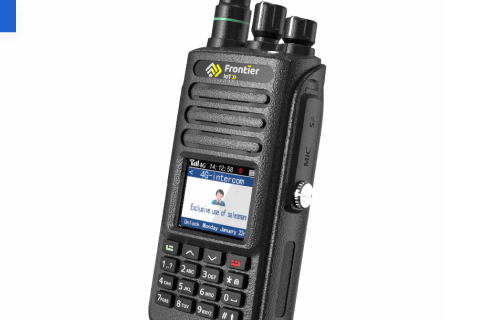

Extraordinary User Experience

Its 1.8” color LCD screen incorporates transflective display technology which allows PT300U to provide excellent readability even in bright sunlight.

Our "Simple, natural, user-friendly, consistent" software design philosophy enables us to deliver an exceptional user experience.

Your Image
Your Image

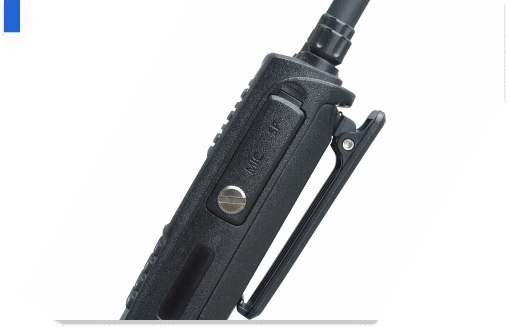

Long-lasting Battery with Cradle Charger

The PT300U includes a 3,600mAh battery that provides sufficient power to last an entire shift on a single charge.

For added convenience, a cradle-style charger is also included with each unit.

Best-in-Class Audio

PT300U can deliver loud and clear audio even in difficult environments.

Its innovative AI based noise cancellation technologies are leveragedto optimize sonic clarity. A powerful waterproof speaker matchedwith an amplifying sound chamber allows the PT300U to produce loud, clear speech and outstanding overall audio quality.

Your Image
Features

01

Multiple Modes of PTT Call PT300U’s PTT function can be used to initiate an Individual Call, Group Call, Call All, or Broadcast Call.
These modes can be easily selected and utilized to meet the unique, immediate communication needs various common applications.

02

Real Time Positioning PT300U provides highly accurate, real-time GPS location by combining GPS, GLONASS, and BDS hardware with innovative assisted positioning algorithms

03

Intelligent Patrol PT300U supports intelligent patrol route verification.
Patrol workers use a simple checkbox system in the PT300U’s menu to report check-in, location is then verified using real-time GPS and/or Bluetooth positioning.

04

Dispatcher Remote Control Support PT300U has built-in features to allow dispatchers to perform certain actions remotely such as stunning, enabling, or disabling of individual terminals.
Geo-fencing and physical track playback of terminals are also available at the dispatcher interface.

05

Emergency Alarm PT300U can send instant SOS notifications in the case of an emergency.
Emergency alarms can be initiated by a long-press of the panic button, as well as triggered automatically by its man-down or lone-worker alarm features.
Specification

LTE FDD frequency

  • Working voltage: 3.7V
  • Operation system: Linux system
  • Language: Chinese/English

LTE TDD frequency

  • B2: Tx frequency:1850-1910MHz Rx frequency:1930-1990MHz
  • B4: Tx frequency:1710-1755MHz Rx frequency:2110-2155MHz
  • B5: Tx frequency:824-849MHzRx frequency:869-894MHz
  • B12: Txfrequency:699-716MHzRx frequency:729-746MHz
  • B13: Tx frequency:777-787MHzRx frequency:746-756MHz
  • B14: Tx frequency:788-798MHz Rx frequency:758-768MHz
  • B66: Tx frequency:1710-1780MHz Rx frequency:2100-2200MHz
  • B71: Tx frequency:663-698MHz Rxfrequency:617-652MHz

WCDMA frequency

  • B2: Tx frequency:1850-1910MHz Rx frequency:1930-1990MHz
  • B4: Tx frequency:1710-1755MHZ Rx frequency:2110-2155MHz
  • B5: Tx frequency:824-849MHz Rx frequency:869-894MHz

  • Antenna: all networks external antenna、GPS antenna built-in
  • Screen: 1.77 SPI color screen，resolution: 128*160
  • CPU: Quectel EC25AFFA
  • Battery capacity: ≥4000mA
  • Rx sensibility: -106dbm
  • Max.Tx power: 23dBm~25dBm@All up bits
  • Working temperature: -20——+60°C
  • Storage temperature: -20——+60°C
  • Audio output power: 2W@10% distortion

Voltage Level

  • Power consumption: 16.5mA@3V(Continuous Mode)4.5mA@3V(Saving Mode,1Hz)
  • Power Supply: 1.4V-3.6V

Performance parameter

  • Receiver Type: 56-channel u-blox 7 engine
  • GPS/QZSS L1 C/A,GLONASS L1 FDMA
  • SBAS:WAAS, EGNOS, MSAS
  • Maximum: up to 10Hz

Update rate

  • Accurancy: GPS GLONASS
  • Positioning: 2.5m CEP 4.0m
  • SBAS: 2.5m-CEP N.A.

Capture

  • Cold start: 20S 30S
  • Weight: 5S N.A.
  • Accurancy: 1S 1S

Sensitivity

  • Track: -161dBm -158dBm
  • Cold start: -148dBm -140dBm
  • Warm start: -148dBm -145dBm

  • Assisted GPS: AssistNow Online AssistNow Autonomous
  • AssistNow Offline OMA SUPL & 3GPP

  • Oscilator:
  • built-in(MAX-7Q/7W),the ordinary crystal(MAX-7C)

  • RTC crystal: built-in(MAX-7Q/7W)
  • Or more cost-effective solution
  • Current solution

  • An-ti interference: Active CW detection and removal
  • Storage: ROM
  • Support: active antenna and passive antenna

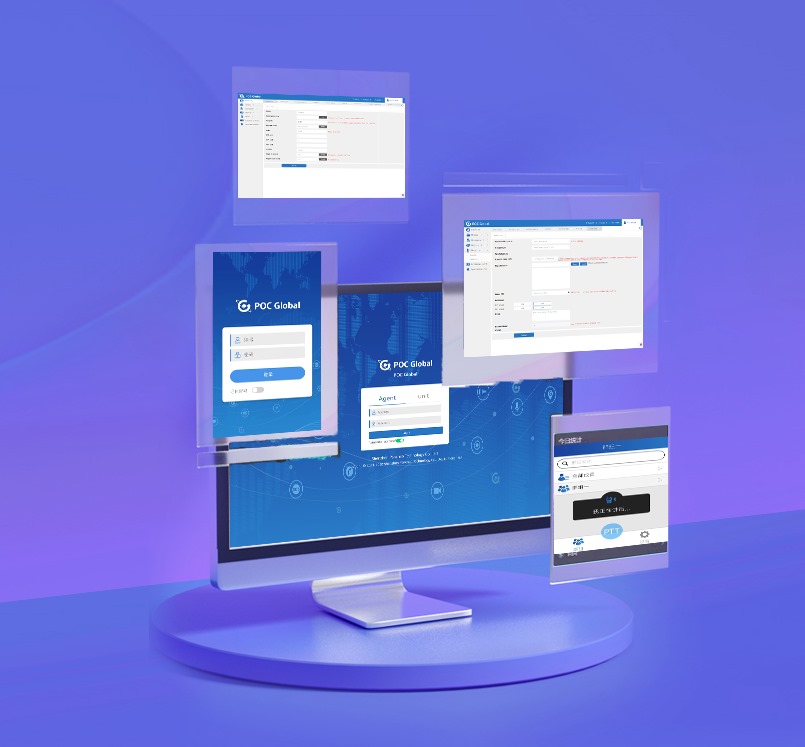

Dispatching Platform

Centralized management brings lower cost maintenance.
Based on the TRO69 protocol, MDM platform provides rich features for remote management
